Wishbone Plus is essentially the heavyweight version of the classic Wishbone. Designed to meet the requirement for heavier screens, it can support weights of up to 24 kg, comfortably supporting the majority of larger format screens, iMac’s and all-in-one PC/Monitors.
Features
- Can be installed at different heights to suit different user environments
- Post system can be extended to increase height range
- Integrated cable management
- Quick release mechanism as standard - the monitor can be released from the arm in seconds
- Suited to multi-screen environments
- Flexible arrangements due to wishbone post system
Specifications
Weight Capacity | up to 24 kg | |
Tilt | 180°up / down | |
Rotation | 90° for portrait / landscape viewing | |
Pan | 180° left / right | |
Lift | N/A | |
Arm Extension | 437 mm | |
Colour | Brushed Silver | |
Display Compatibility | VESA 75/100mm | |
Mounting Options | Desk clamp - for desk < 38 mm thick | |
Bolt through - for desk < 35 mm thick |

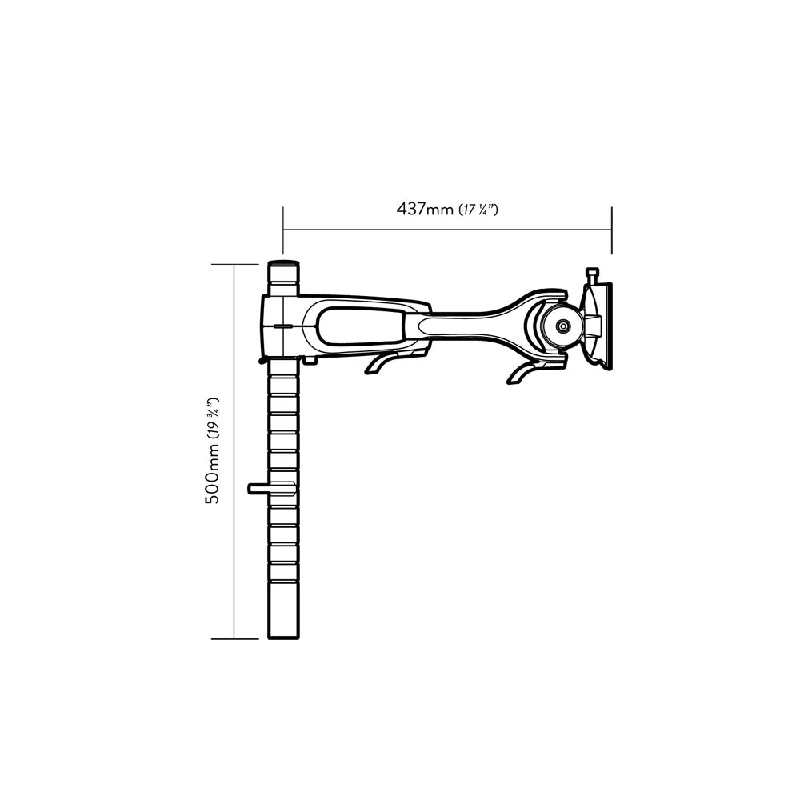

Technical Drawing
For technical drawing please view in gallery or download PDF file.
