The Conset DM19 is a designer, single column base, with a 100kg lifting capacity. It comes standard with a footrest and the base can be customised to suit various desktop shapes. Perfect when designing an office environment with large groups of people and limited space. Like call centres and educational institutions.
Desktop Options:

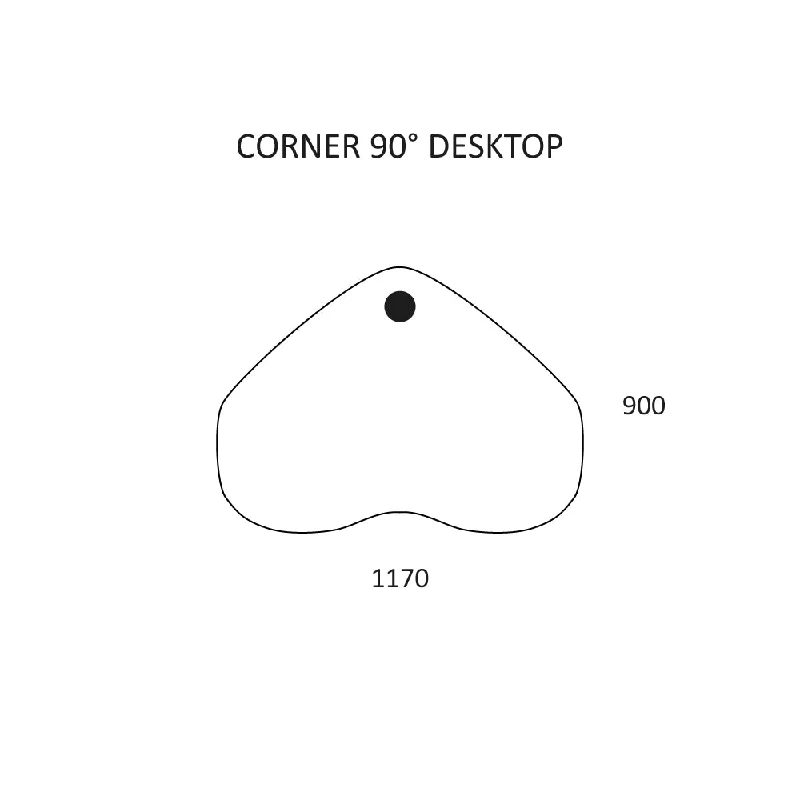

Corner 90° : 1170 x 900

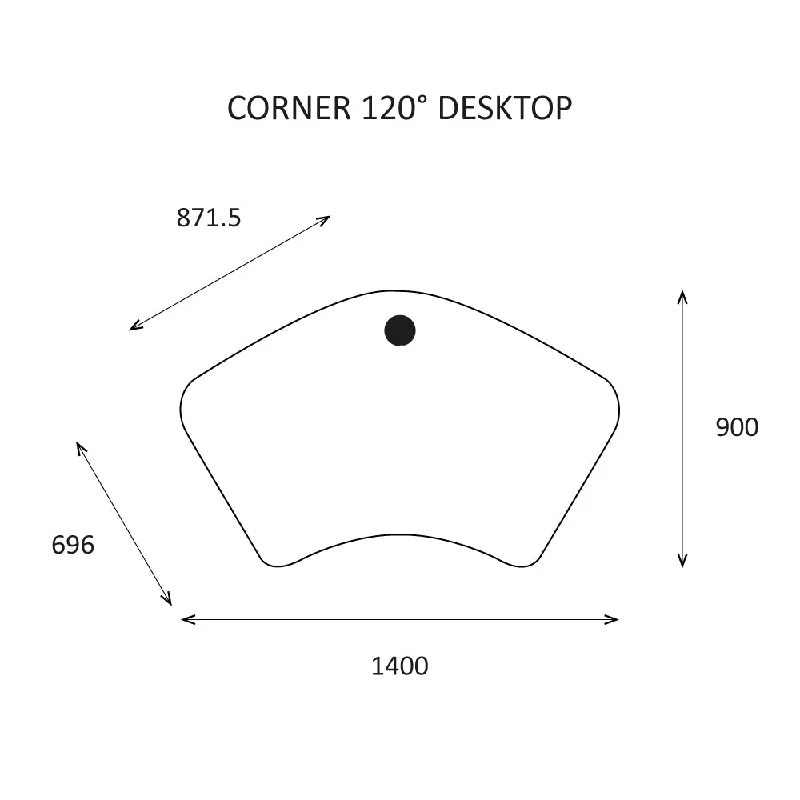

Corner 120°: 1400 x 900

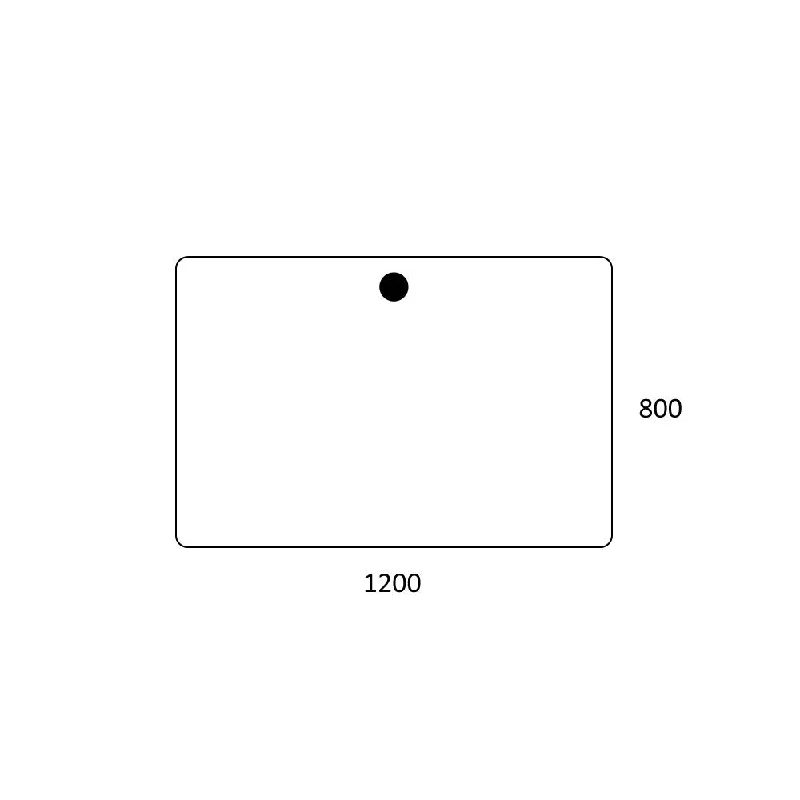

Rectangular: 1200 x 800
Optional Extra:
Desks are shipped "Flat Packed" and will need to be assembled. Please note that the desktop is not pre-drilled. For more info, please view Installation below.
Specifications
| Height Range | 660mm to 1180mm |
| Frame Lifting Capacity | 100kg |
| Frame Colour | Silver outer with black inner parts and footplate |
| Speed | 25mm/sec |
| Levellers | 6 |
| Top Sizes | 1200mm to 1400mm wide x 530mm deep |
| Controller | 2 button controller |
| Desktop Options | Corner 90° : 1170 x 900 mm |
| Corner 120° : 1400 x 900 mm |
|
| Rectangular: 1200 x 800 mm |
|
| Warranty | 2 years on motor and 5 years on frame |
Downloads
|
|
|
|
|
|
|
|
Installation
All of our desks are shipped flat-packed, and require minimal assembly. Desks come with full instructions, as well as all the pieces, screws and bolts necessary for installation. Please note, a Phillips head screwdriver, drill and hammer are required.
